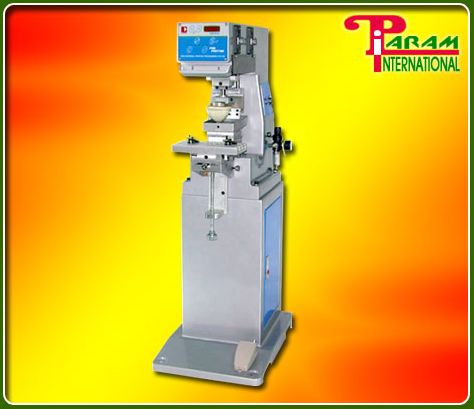

SINGLE COLOUR PAD PRINTER WITH BASE

Model:	P-PPB-2K
Product Name:	Single Colour Pad Printer With Base
Plate size:	100 × 100 mm (Open Inkwell)
Cup size:	90mm (Latest Closed Cup System)
PCS/Hour:	1800 pcs/hour
Air Consumption:	5 bar
Power:	220/110v 50/60 Hz.
Net Weight:	58kg.
Aprx.. Dimensions:	57× 41× 115 cm.

Key Specification / Special Features
Single Chip Microprocessor control, very simple & user friendly.
Assurance of quality with SMC precision pneumatic parts.
Easy Inking, fixing, dismounting & cleaning of the ink scraper.
Ink blade can be automatically balance, ensures a perfect ink scraping.
The printing speed of the pad & the printing stroke can be adjusted for different printing requirements.
Sweeps forward & backward without pad moving down to prevent ink drying.
Colour setting is simple & convenient, ink tray, doctor blade & pads can easily installed or dismounted for quick cleaning.
The extra function "Twice inking once printing" is designed for thicker ink film.
Built in LED. Digital Counter.
With 5 digital programming systems.
With aluminium alloy frame & base, the machines is light & study.
Suitable for printing single colour on any surface, weather in flat, round, concave, irregular, smooth or uneven surfaces.
Ink tray, work table & pads are independently adjustable for easy colour registration.
